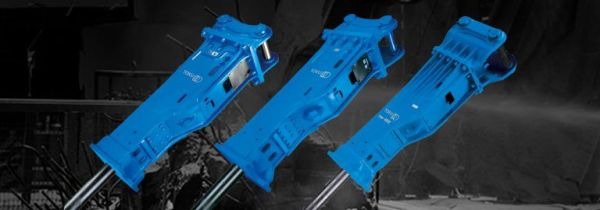

Toku Mini Hammers

Toku’s mini hydraulic breaker range features hammers suited to excavators from 0.7 – 6.0 tonne. While they are compact in design, Toku’s TNB Mini series packs a punch with impressive impact rate and force. Suited to a variety of applications including small trenching, road construction and landscaping, the Toku TNB Mini series has the versatility and performance you need when tackling any hammer job.

Cushion Chamber

Important impact source since TNB-breakers source its Impact Energy 70% from Nitrogen Gas Pressure of cushion chamber and the rest of 30% from the Operation Oil Circuit.

Accumulator Free Breaker Structure

Allows easy and low cost maintenance.

Dust Preventing Valve

Takes cleaner air from upper area into the impact chamber and blows out the dusty air to bottom. This valve port is also used for Underwater Application to lead the high pressure air from a compressor.

Grease Supply

Direct and Independent Grease Supply to Chisel Bush and Chisel Holder Bush. A chisel is the most consumed item and this system contributes well for the long life of chisel.

Durable Side Bolts

Stress scattered structure and partially rubber coated for anti-vibration.

Short Oil Path

The oil path between control valve and cylinder is taken shortest as less as possible to avoid any secondary trouble.

Long Stroke Piston

Gives more powerful impact energy and brings a stable breaker operation.

Dual Oval Retainer Pins

Robust and guarantees correct tool alignment and long life.

50/50 Piston to Tool Weight Ratio

Efficiently transfers blow energy into the material and reduces recoil.

Working Weight

Name	TNB-08M	TNB-1M	TNB-2M	TNB-3M	TNB-4M	TNB-5M
Working Weight - Top Mount Type	75 kg	100 kg	140 kg	210 kg	255 kg	315 kg
Working Weight - Box Type	85 kg	125 kg	170 kg	250 kg	340 kg	400 kg

Dimensions

Name	TNB-08M	TNB-1M	TNB-2M	TNB-3M	TNB-4M	TNB-5M
Width	280 mm	280 mm	290 mm	310 mm	310 mm	330 mm
Height	1,106 mm	950 mm	1,215 mm	1,370 mm	1,500 mm	1,571 mm
Tool Diameter	40 mm	45 mm	50 mm	58 mm	64 mm	75 mm
Tool Length	450 mm	470 mm	495 mm	590 mm	640 mm	710 mm
Min. Carrier Range	0.7 ton	0.7 ton	1.5 ton	2.4 ton	3 ton	3.8 ton
Max. Carrier Range	1.5 ton	1.5 ton	2.5 ton	4 ton	4.5 ton	6 ton

Hydraulics

Name	TNB-08M	TNB-1M	TNB-2M	TNB-3M	TNB-4M	TNB-5M
Min. Impact Rate	930 bpm	700 bpm	600 bpm	550 bpm	580 bpm	550 bpm
Max. Impact Rate	1,300 bpm	1,200 bpm	1,150 bpm	1,000 bpm	1,060 bpm	1,000 bpm
Min. Oil Flow	18 l/min	20 l/min	20 l/min	25 l/min	30 l/min	35 l/min
Max. Oil Flow	25 l/min	30 l/min	35 l/min	45 l/min	55 l/min	60 l/min
Min. Operating Pressure	6 MPa	7 MPa	8 MPa	10 MPa	10 MPa	10 MPa
Max. Operating Pressure	13 MPa	14 MPa	15 MPa	15 MPa	16 MPa	16 MPa
Hose Size	3/8 inch	1/2 inch	1/2 inch	1/2 inch	1/2 inch	1/2 inch
Gas Pressure	0.8 MPa	0.8 MPa	0.8 MPa	0.8 MPa	0.8 MPa	0.8 MPa

Design Features

Name	TNB-08M	TNB-1M	TNB-2M	TNB-3M	TNB-4M	TNB-5M
Auto Greasing System	close	close	close	close	close	close
